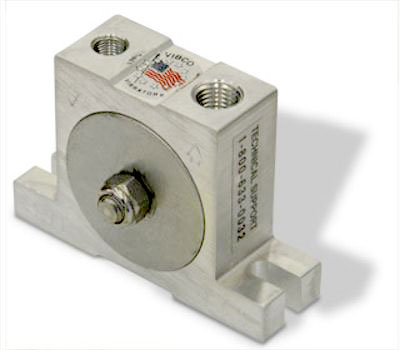

MHI-100 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

Mounting Plate for B,BV,BVS-130

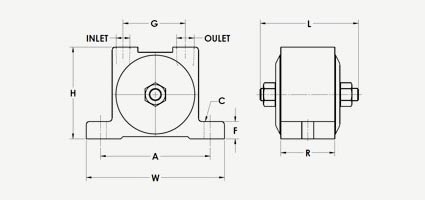

Dimensions

A 2-1/4 in
57 mm
C* 1/4 in
6 mm
L 1-9/16 in
40 mm
W 2-3/4 in
70 mm
H 2 in
51 mm
F 1/2 in
13 mm
G 1-1/16 in
27 mm
R 13/16 in
21 mm
INLET 1/8 NPT
OUTLET 1/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 24000
CFM 4
Force lbs 80
dB 68
Force Newtons 356

VIBCO MLT and MHI Millennium™ Sanitary Turbine Vibrators are an ideal choice for sanitary, food, medical, and pharmaceutical industries including harsh chemical environments.


  • Use VIBCO MLT and MHI Millennium™ Turbine Vibrators on any new or existing turbine vibrator application or to replace worn, noisy or messy ball or piston vibrators.
  • VIBCO MLT and MHI Millennium™ Turbine Vibrators feature extruded aluminum housings, stainless steel shafts, and aircraft aluminum covers, giving these vibrators additional strength, durability, and long life
  • Can be used with 30 to 80 PSI
  • High temperature environment models are available.
  • Virtually silent vibrator with low air consumption and is maintenance free
