FBS-160 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

46102 - Filter/Regulator 1/4" NPT

86102 - Ball Valve 1/4"

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

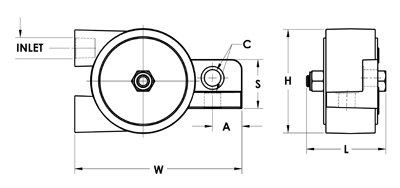

Dimensions

A	5/16 in
	8 mm
C*	3/8 in
	10 mm
L	2 in
	51 mm
W	4-1/8 in
	105 mm
H	2-9/16 in
	66 mm
S	1-1/4 in
	32 mm
INLET	1/4 NPT
*	Bolt Size

Tech Data

60 psi
VPM	10500
CFM	6
80 psi
VPM	13000
CFM	7
Force lbs	225
Force Newtons	1001
dB	68
Max Lbs Material in Bin	For Match-Plates
Weight	2 lbs

VIBCO FBS Silent Pneumatic Turbine Vibrators are specially designed for use as a match plate vibrator on foundry molding machines.

Use VIBCO FBS Turbine Vibrators on any new or existing match plate application
VIBCO FBS Silent Pneumatic Turbine vibrators feature a fast start, high vibrations (revolutions) per minute, and a built-in muffler.
Lower-cost solution, rated for intermittent duty.
Virtually silent and maintenance free
